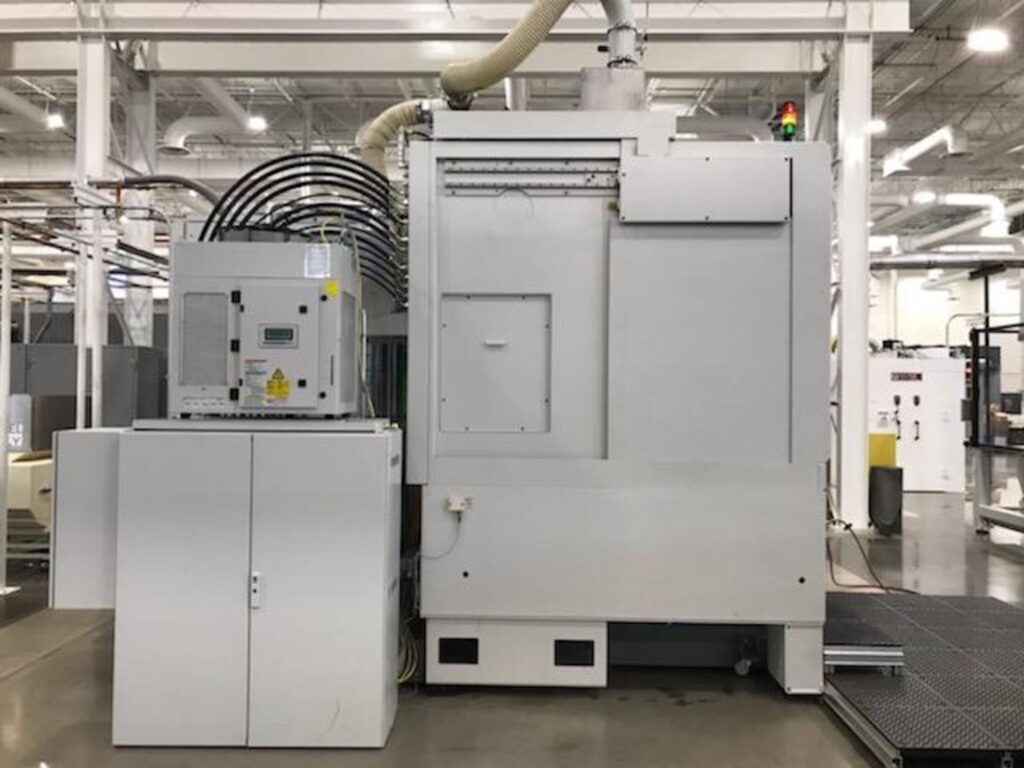

Featuring an Unused, 24″ EMAG VMC 450-5 MT manufactured in 2021

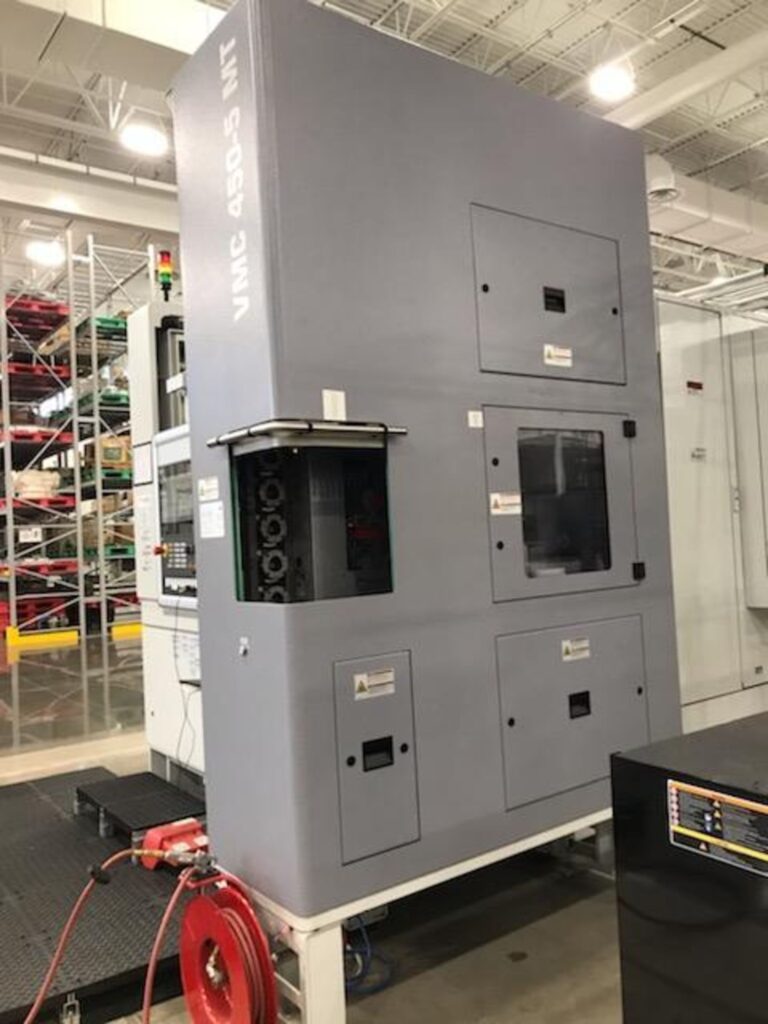

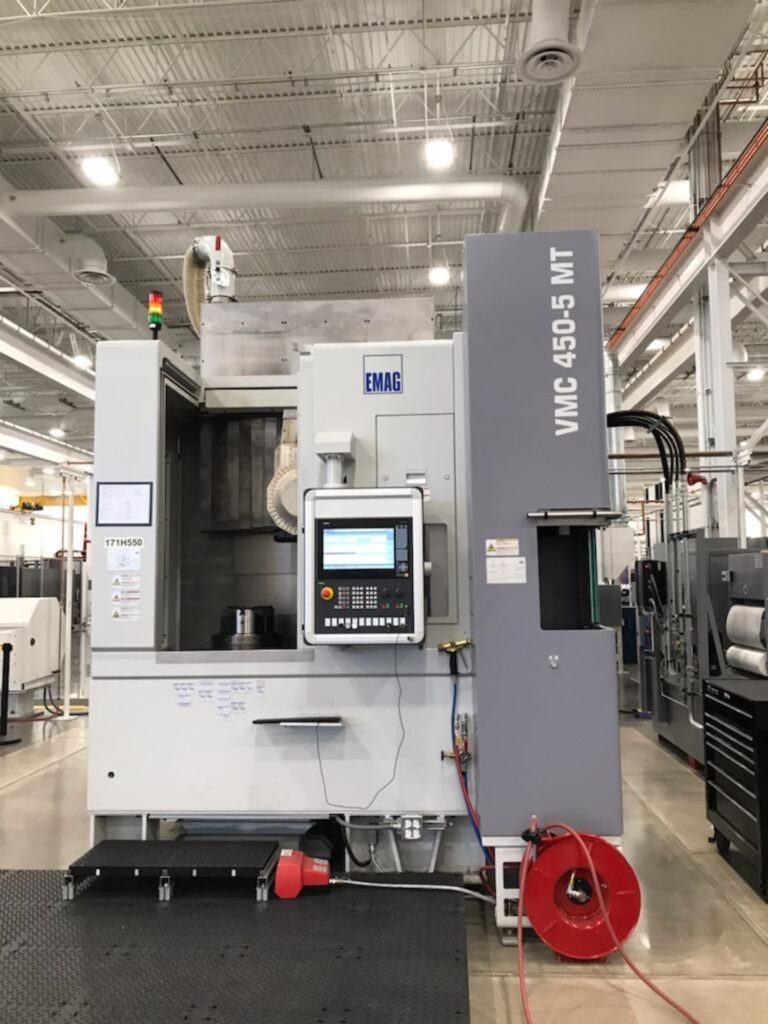

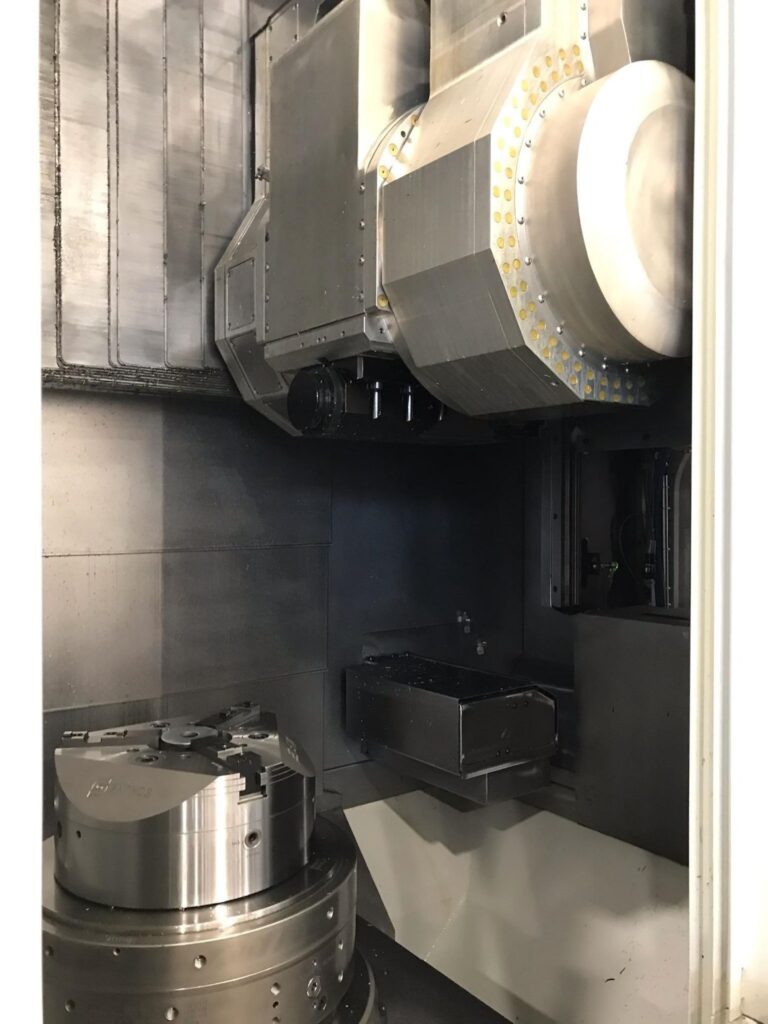

EMAG 450-5 MT | 5-Axis Vertical Turning & Milling Center
SPECS:

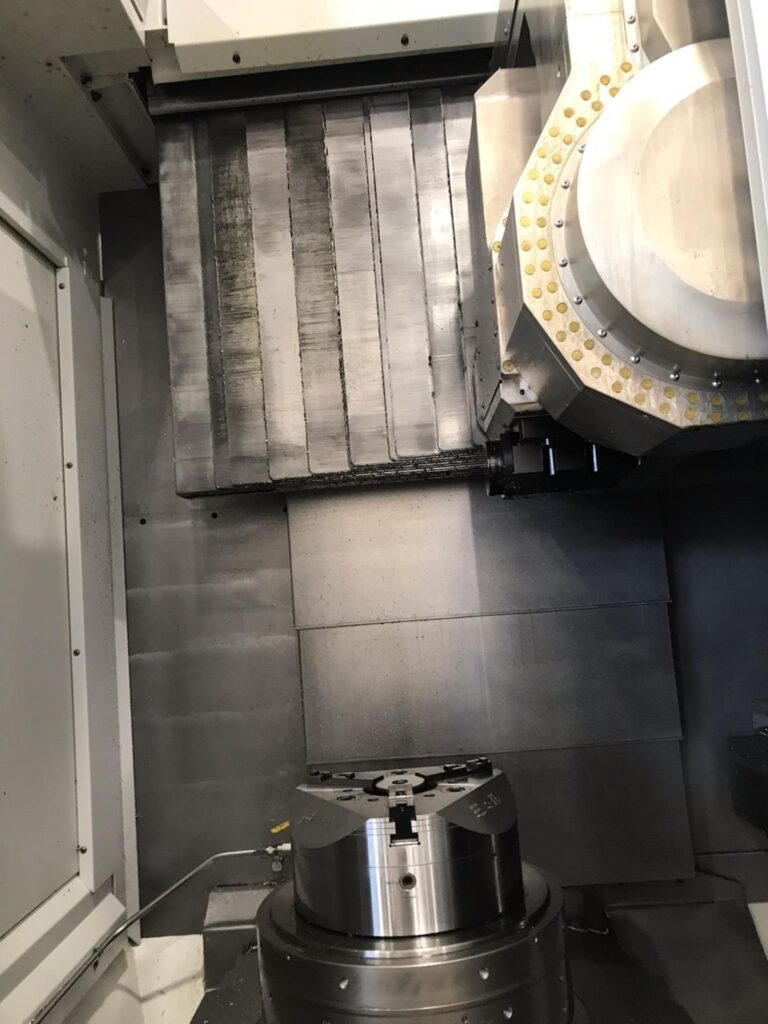

- Chuck Dia.: 24″
- Capacity: 1100 pounds
- Max Swing Diameter: 31″
- Turning Diameter: 23.5″
- X-Axis Travel (Upper/Lower): 30″
- Z-Axis Travel (Upper/Lower): 19″
- Drive Power: 100 HP (full power at 800 RPM)
- Max Spindle Speed (RPM): 2000 RPM
- Z-Axis Rapid Traverse Rate: 60/30 M/Min.
- Feed Force X / Z: 4 / 15 kN
- Ball Screw Diameter X / Z: 40 / 50 MM
- Milling Spindle Motor: 100 HP
- Max Milling Spindle Speed (RPM): 7000 RPM
- Milling Spindle Taper: CAPTO C8
- Tool Changer Capacity: 60
MAIN DRIVE:
POWER: 100 HP
FULL POWER AT 800 RPM
MAX SPINDLE RPM: 2,000
C AXIS POSITIONIONG TO .01MM ANGULAR DEGREES
FEED DRIVE:
RAPIDS Z / Z: 60 / 30 M / MIN.
FEED FORCE X / Z 4 / 15 kN
BALL SCREW DIAMETER X / Z: 40 / 50 MM
MILLING SPINDLE:
POWER: 100 HP
MAX SPINDLE SPEED: 7000 RPM
SPINDLE TAPER: CAPTO C8
TOOL MAGAZINE: 60
EQUIPPED WITH:
MINERALIT MACHINE BED

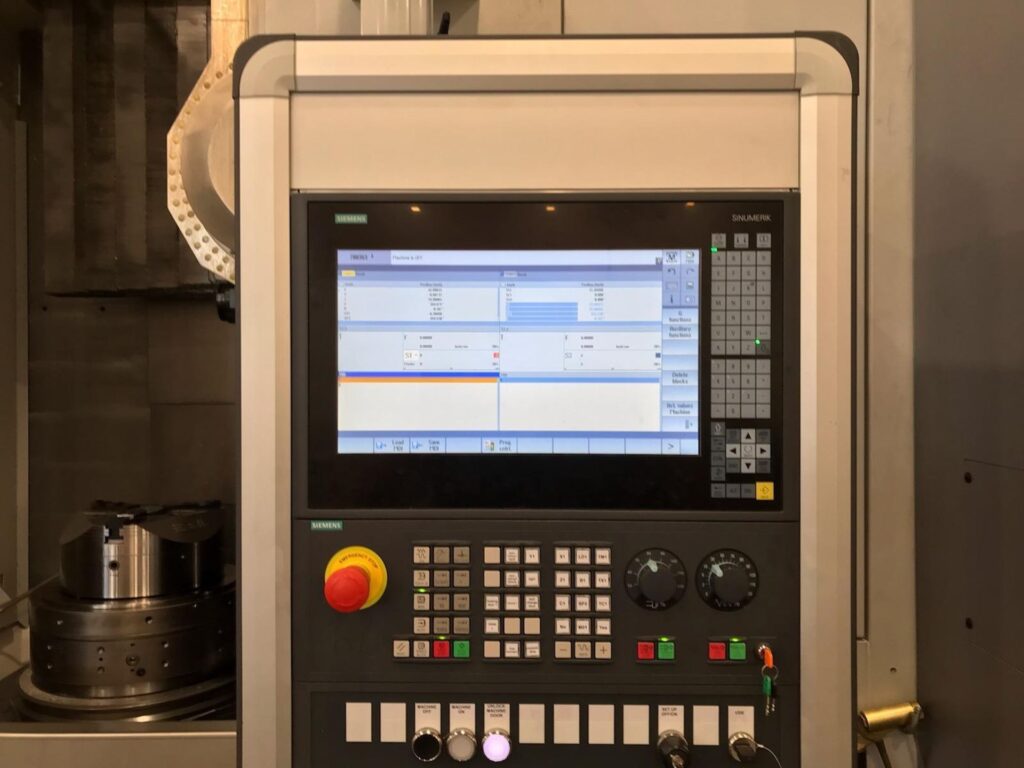

SIEMENS 840 Dsl
FULL ENCLOSURE
LEVEL PADS
TURN MILL DRIVE
EMAG WORKPIECE CORRECTION SYSTEM
EMAG OPERATING AND SETTINGS MASKS
EMAG REMOTE DIAGNOSIS
Y AXIS

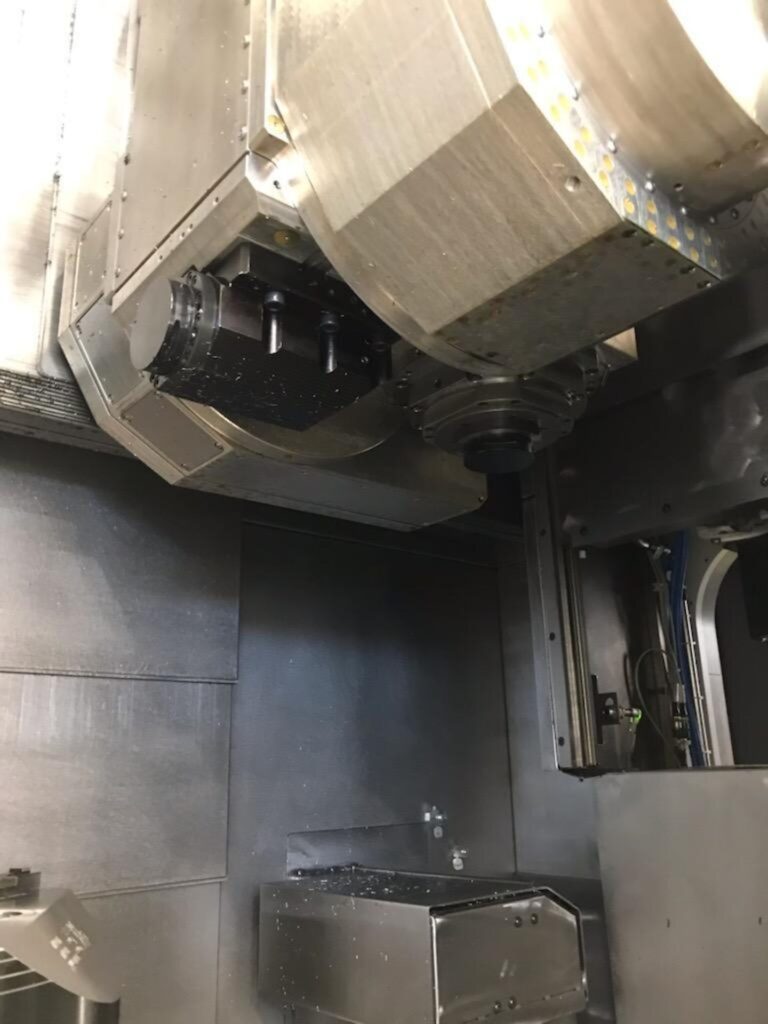

B AXIS +/- 95 DEGREE
1000 PSI COOLANT THROUGH TOOL
X-AXI CLAMPING FOR GEAR TOOTH FORMING
SWARF CONVEYOR, CHAIN TYPE – REAR DISCHARGE
LIFTING PUMP

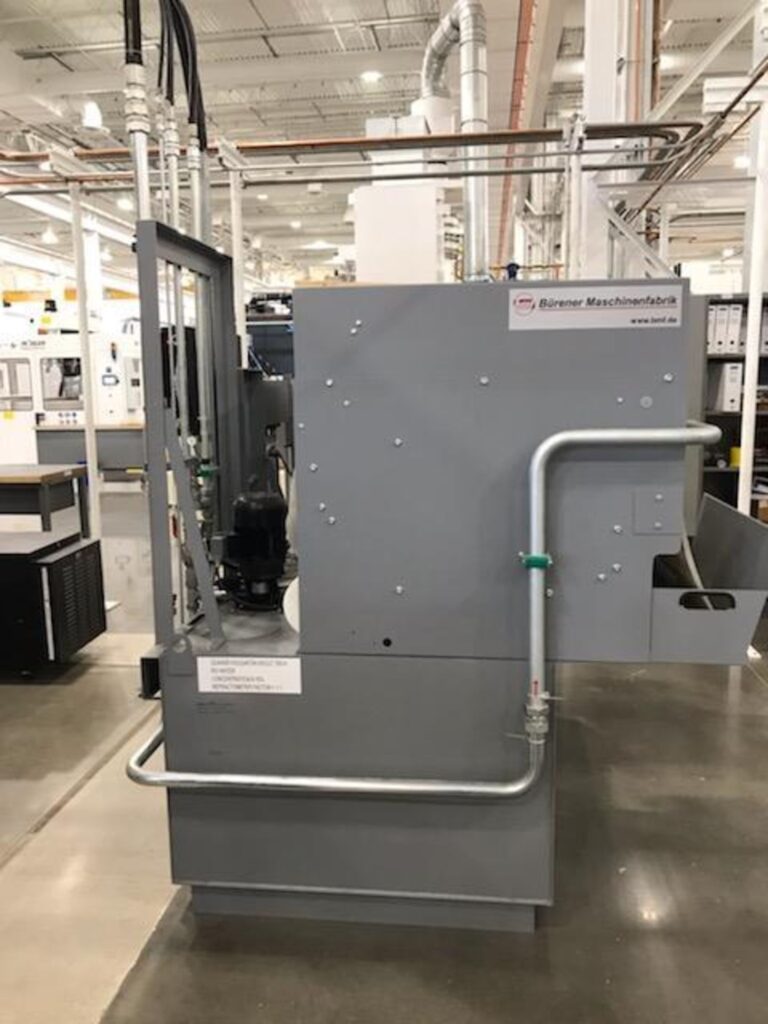

PAPER FILTER
LOW PRESSURE COOLANT
HIGHT PRESSURE COOLANT 1000 PSI
PROGRAMMABLE COOLANT PRESSURE
COOLANT MIST EXTRACTOR
AIR BLAST
CHIP FLUSH
QUALITY CONTROL:
WIRELESS GAUGING
CALIBRATION BLK FOR PROBE
TOOL GAUGING – BLUM LASER
